PHOTOVOLTAIC GLASS
AZO GLASS
Time:2019-11-01 18:17 Number of visits:

AZO Glass is a kind of TCO glass mainly used for producing thin film solar cells as substrate/front TCO glass or seal glass/back glass. The right balance between transmittance, haze and conductivity of the TCO coating enable it to improve the cell efficiency of thin film solar cells embedded in photovoltaic modules.
Features:
Light transmittance: >80%
Sheet resistance: 7-15Ω
Haze: 10%-50%
good laser etching properties
good weatherability and durability
High light transmittance, high mechanical strength, high planeness.
Product’s Description:

Type TCO Glass(Ultra Clear Float Glass)
Conductive Coating SnO2: F Based or ZnO: Al Based
Deposition CVD
Applications Front glass or back glass for thin film solar cells (a-Si: H solar cells, μc-Si tandem solar cells and CdTe solar cells).

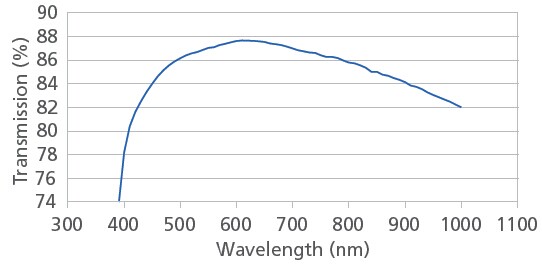

Transmittance Curve:

Specifications:
Thickness: 3.2mm, 4mm,
Size: customized size
Applications:
FTO Glass or AZO Glass is widely applied in a-Si: H solar cells, μc-Si tandem solar cells and CdTe solar cells because of its potentials to lower the reflectivity between the interface and the absorber, to increase the light path into the absorber and to trap the solar energy into the absorber.
