FLAT SOLAR MIRROR
Time：2019-11-01 18:17 Number of visits：
Flat Solar Mirror is widely used in both of tower power technology and linear fresnel technology in the CSP field.

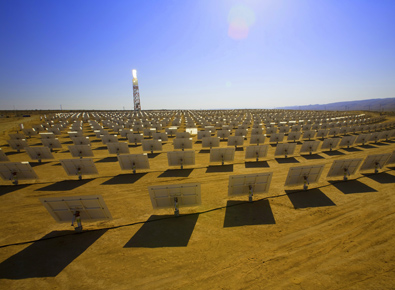

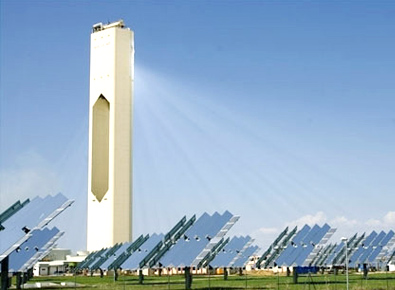

1. Tower power technology: a lot of heliostats which are composed of solar mirrors reflecting and concentrating the solar radiation to the heat collector in the top of tower, heating up transferred fluid(water/fused salt/air锛� and producing high-temperature steam directly and indirectly, and drive the power generator to produce electricity.

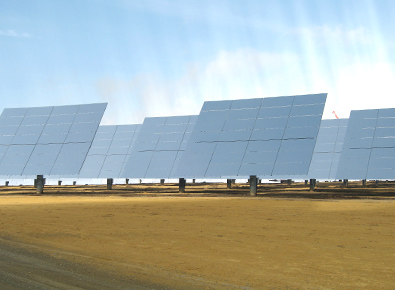

2. Linear Fresnel Technology: a lot of rows of flat solar mirrors which are driven on the single axis track reflect and concentrate the solar radiation of the sunshine onto the heat collector pipes paralleling to the solar mirrors' field, heating up the transferred fluid inside the pipes to produce steam and drive the steam turbine to generate electricity.
Features:Technical working process control:
1. Glass: high quality Low-iron float glass with min. 91% light transmittance.
2. Cleaning: strictly control demi-water pressure, viscosity of polishing powder material and reaction temperature, etc.
3. Silver Coating: silver layer thickness≥1600mg/m2.
4. Copper Coating: copper layer thickness≥320mg/m2.
5. Painting: special UV resistance solar mirror paints
(lead content≤50PPM, viscosity:25-50S, hardness:3B, Paint layer thickness≥110UM)
6. Deep Processing: high precision cutting, high-quality edge polishing.
7. Inspection: Every piece of finished mirror should be passed 3-way inspection for all varies of articles securing the perfect quality.
8. Packaging: All kinds of strong and seaworthy packing way can be offered, eg. wooden crates, steel racks and customized packing materials.

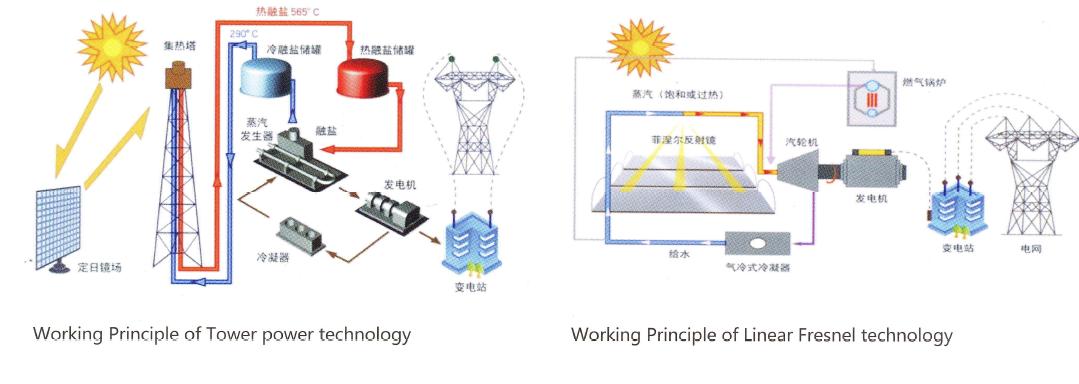

9. Working Principle:

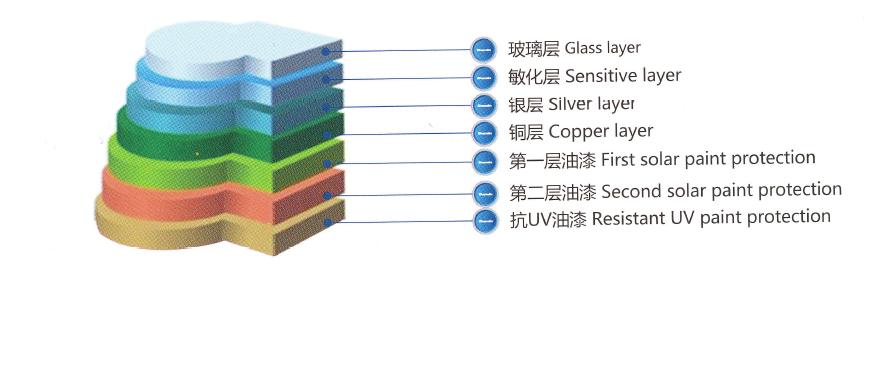

10. Structure:
Specifications:
Thickness: 0.8-4mm
Max Size: 2440*3660mm
Applications:
Flat Solar Mirror is widely used in both of tower power technology and linear fresnel technology in the CSP field.
